代 號

螺紋 THREAD

O形圈OXRING

尺寸 DIMENSIONS

PART NO.

E

F

E端

F端

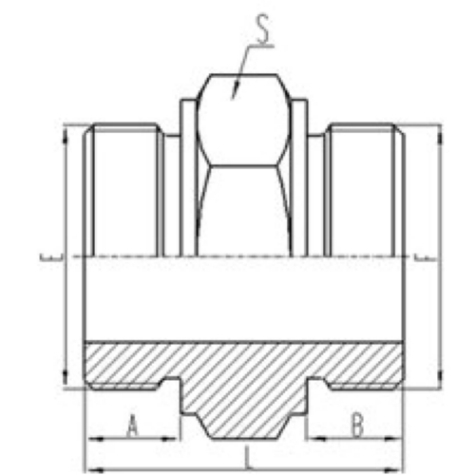

A

B

L

S

1H-10

M10X1

M10X1

8.1X1.6-N90

8.1X1.6-N90

8.5

8.5

28

14

1H-12

M12X1.5

M12X1.5

9.3X2.4-N90

9.3X2.4-N90

11.0

11.0

33

17

1H-14

M14X1.5

M14X1.5

11.3X2.4-N90

11.3X2.4-N90

11.0

11.0

33

19

1H-16

M16X1.5

M16X1.5

13.3X2.4-N90

13.3X2.4-N90

11.5

11.5

34

22

1H-18

M18X1.5

M18X1.5

15.3X2.4-N90

15.3X2.4-N90

12.5

12.5

36

24

1H-22

M22X1.5

M22X1.5

19.3X2.4-N90

19.3X2.4-N90

13.0

13.0

39

27

1H-27

M27X2

M27X2

23.5X3.0-N90

23.5X3.0-N90

16.0

16.0

45

32

1H-33

M33X2

M33X2

29.5X3.0-N90

29.5X3.0-N90

16.0

16.0

48

41

1H-42

M42X2

M42X2

38.5X3.0-N90

38.5X3.0-N90

16.0

16.0

50

50

1H-48

M48X2

M48X2

44.5X3.0-N90

44.5X3.0-N90

17.5

17.5

53

55
